• No.:JS-J15
  • Name:TS-J15 Picture Frame Auto Underpinner
  • view:738

Product Description

Specifications

1, Use-Friendly,
2,Fast working,
3,Memory Programmable,
4,The guy haven't Done this before also can make STANDARD FRAME.



Product Description

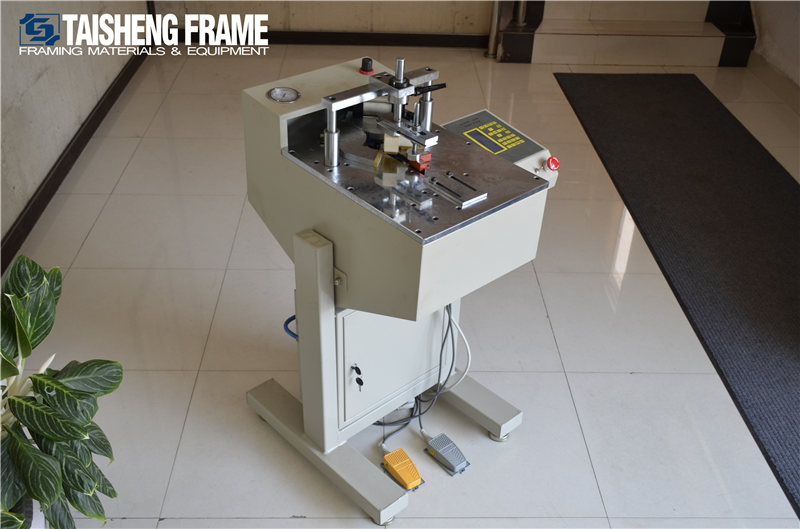

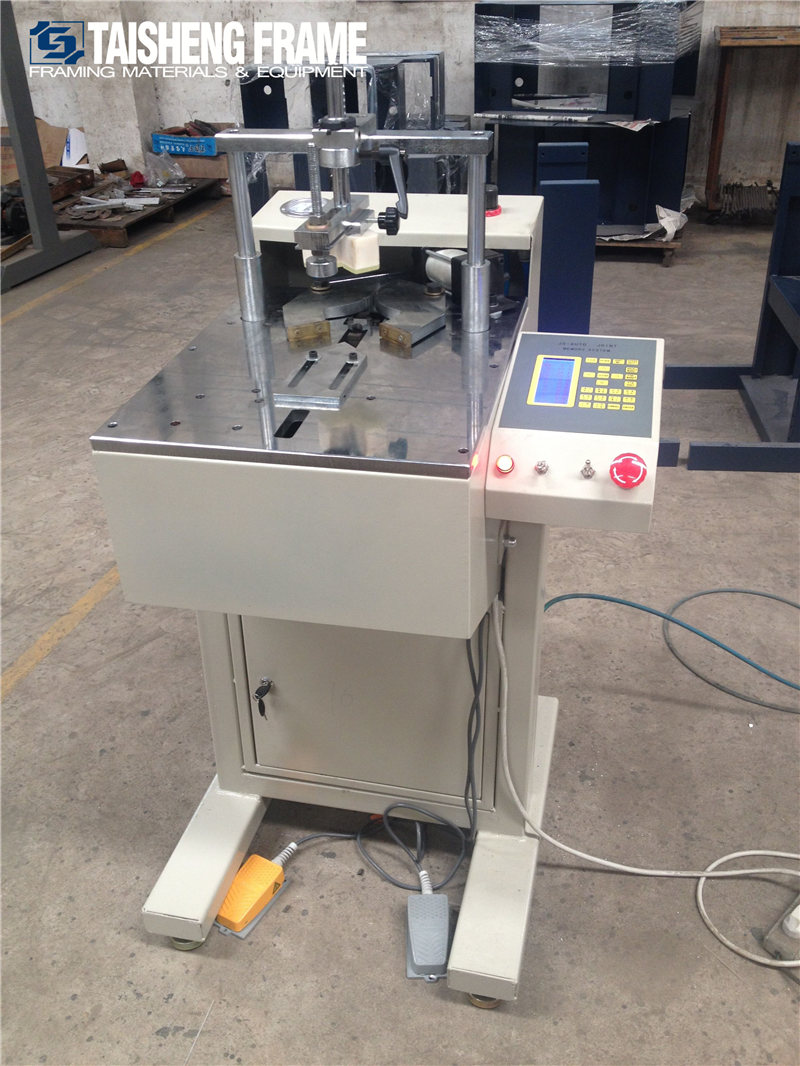

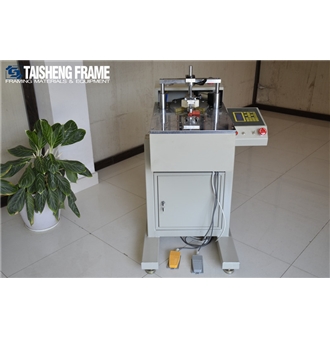

Name: TS-J15 Auto-Underpinner.

This design we made for the one which have large production in each days and export .

All the accessories we use on this machine is a little expensive and good quality . This makes it more durable and less problems .

The Advantage of this machine is as below :

1.  Can save 1000 desings mouldings , easy edit and easy recall .

2.  Two clampon the desk can push the anglein perfect condition.

3.  8 Speed for fix nail . Meet the needs of all kind production and all quality mouldings.

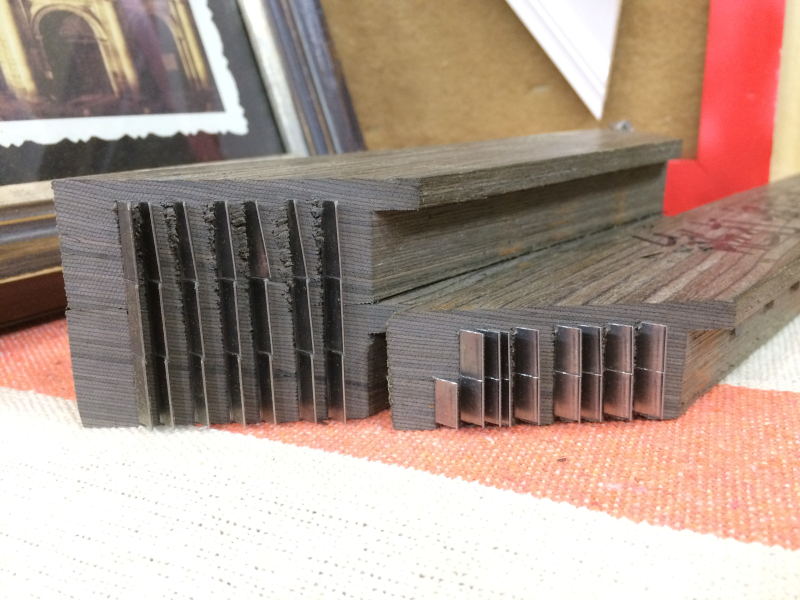

4.  9 position to fix the nail . Each point can fix 9 pcs V-nails . Less nail can saving cost ,more nails can make the angle more stronger .

5.  Do not need to move the moulding any more .  The nail-block will run under the table by itself when it works .

6. Using-friendly control systerm , New framer can handle it well .



 This type works  same as TS-J14,you can open this video to check it: https://youtu.be/NWYgRqrKhXA










Technical data.:







product size L630*W600*H1220mm
max. nailing width 80mm
max. nailing thickness 125mm
Operation system pneumatic working
available v-nail type  AL, UNI
available v-nail size  5/7/10/12/15mm
product weight 0.6-0.8kgs
package wooden case
pieces per carton 1pc/carton
package size L700*W780*H1270mm



Guarantee:







1,one year guarantee; after-sell services and technical guide always available;



2,Instruction manual with operation guide video;



3,Technical support avaible anytime;



4,OEM services avaible;
